Primal Performance Series 125kg Pin-Select - Cable Crossover

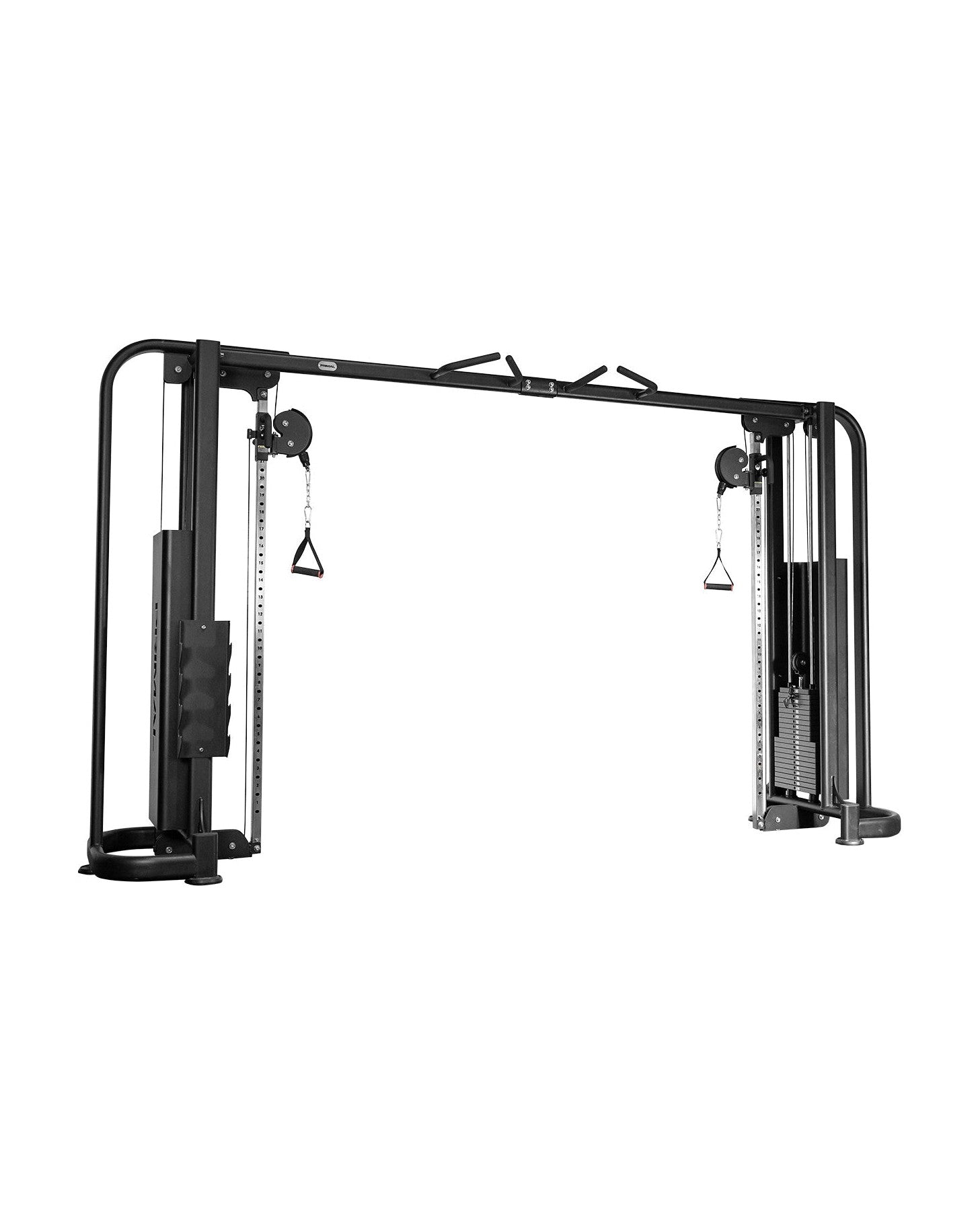

The Primal Performance Series Cable Crossover is a commercial pin loaded cable station with two 125 kg weight stacks (250 kg in total), a 1:1 ratio and a multi grip pull up frame across the top. It spans 3874 × 920 mm of floor space and stands 2252 mm tall, so it suits gyms with a long wall and good ceiling height.

A crossover is one of the most versatile machines on any floor: two independent pulleys let members train almost every muscle group, one side or both, while the top frame adds pull ups and hanging core work.

Who it is for

• Commercial gyms that want a high use cable station for members and PTs
• PT studios where one machine needs to cover chest, back, shoulders, arms and core
• Strength and conditioning facilities doing single arm, rotational and athletic cable work
• Functional training zones that need a pull up station built into the same footprint

Key features

• Two 125 kg pin select stacks, one per side, for 250 kg of total resistance
• 1:1 weight stack ratio so each side delivers the load shown on the stack
• Multi grip pull up frame built into the top of the crossover
• Attachment storage mount to keep handles, ropes and bars tidy and close by
• 100 × 50 × 3 mm oval frame tubing with a double coated surface treatment
• Magnetic weight stack pins for quick, positive weight changes

Muscles worked and training uses

With a pulley on each tower, users can push, pull, fly, rotate and hinge from almost any angle, so muscle targets change with the exercise rather than the machine.

• Primary: chest (cable flys), back and lats (rows, pulldowns and pull ups) and shoulders (raises and face pulls)
• Secondary: biceps, triceps, core and glutes through curls, pushdowns, rotations and kickbacks
• Single arm and single leg work to correct side to side imbalances
• Rotational and anti rotation core training for field and court sport athletes
• Busy PT sessions where one station covers a full body program

Specifications

Frequently asked questions

How much space does the Primal Cable Crossover need?

The frame is 3874 mm long, 920 mm deep and 2252 mm high. With about 600 mm of clear space around it, plan for a zone of roughly 5.1 × 2.1 m, and add extra room in front if members will step or lunge away from the towers.

How many weight stacks does it have?

Two. Each tower has its own 125 kg pin select stack, giving 250 kg in total, and both run at a 1:1 ratio.

What ceiling height does it need?

The machine itself is 2252 mm tall, so it will fit under a 2.4 m ceiling. If members will use the pull up frame, they need headroom above the bar, so a ceiling of about 2.7 m or higher is a better target.

What warranty applies?

Primal Strength covers it for full commercial use: 5 years on the frame, 3 years on parts, 1 year on pads, cables, pulleys and wearables, and 1 year labour.

Do you deliver and install the crossover in Australia?

Yes. We ship Australia-wide from our Melbourne warehouse, with most metro deliveries 1 to 7 business days after dispatch. At 500 kg packed, some regional addresses need a freight quote, and installation is strongly recommended. Use the Ask about this machine form on this page for a delivery and installation quote.

Can two people train on it at once?

Yes, with some care. Each tower has its own stack, so two users can do single arm work on separate sides, although most crossover exercises use both towers for one person.

Pair the crossover with the Primal Dual Lat Pulldown/Seated Row and Chest Press for a well rounded selectorised strength floor.
