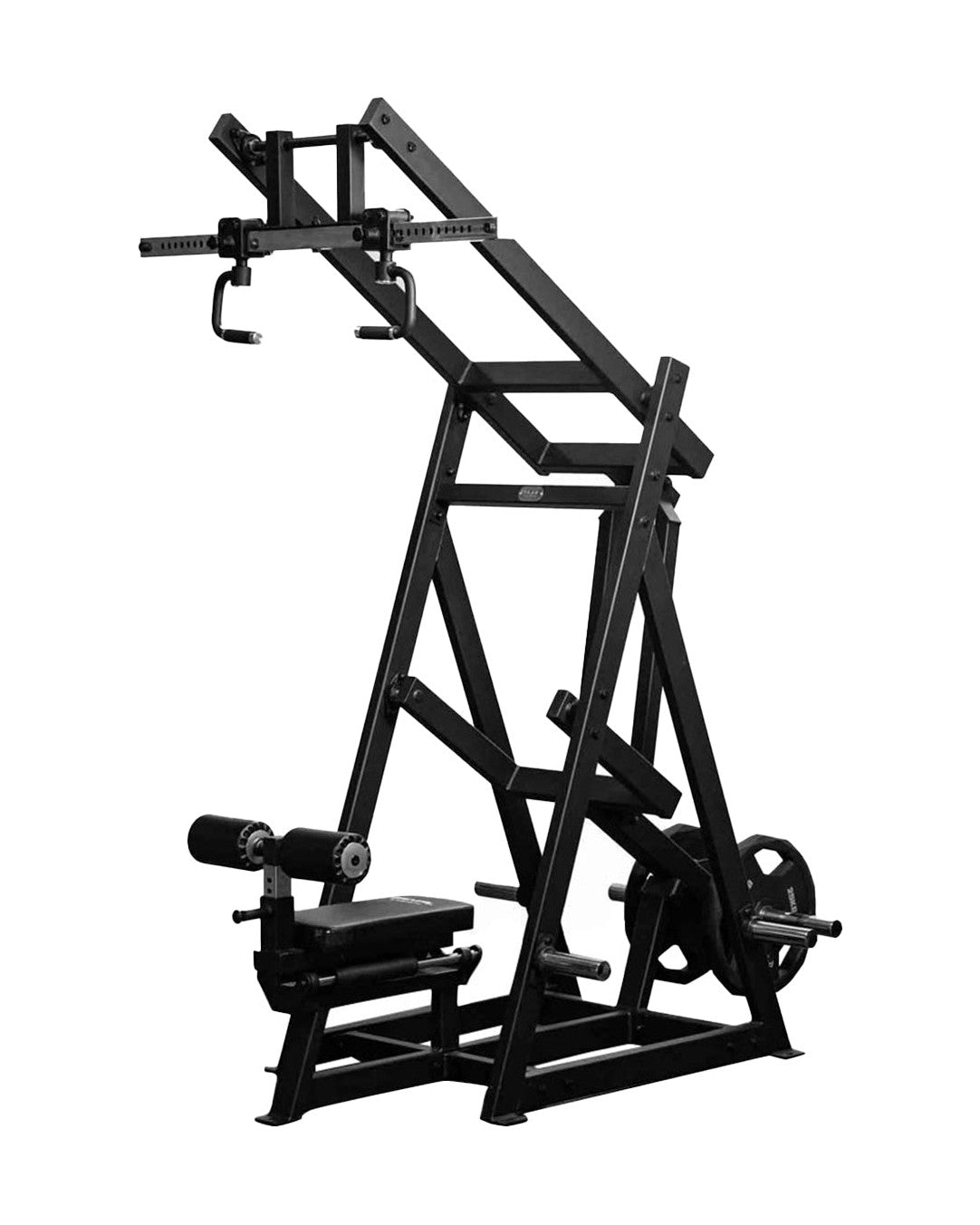

Primal Performance Series Front Facing Lat Pulldown

The Primal Front Facing Lat Pulldown is a plate loaded lat pulldown with a dual lever arm, built for commercial gyms, PT studios and strength facilities that want heavy back training without a cable stack. It loads with 50 mm Olympic plates, takes up 1800 × 1250 mm of floor space and stands 2450 mm tall.

The seat slides forward for a near vertical pulldown or back for a high row, and the handles rotate freely on bearings, so one machine covers lats, upper back and rear delts while letting each user find a grip that suits their joints.

Who it is for

• Commercial gyms building out a plate loaded back section
• PT studios training clients who need a joint friendly pulldown they can load progressively
• Strength and conditioning facilities that want pulldown and high row work from one frame
• Lifters with sore wrists, elbows or shoulders who struggle on a fixed straight bar

Key features

• Dual lever loading that holds tension on the working muscle from the top of the rep to the bottom
• Sliding seat position: forward gives a near vertical pulldown, back turns it into a high row
• Pop pin grip width adjustment from a wide overhand grip through to close underhand or neutral
• Handles that spin 360 degrees on bearings, even mid rep, so the wrist can settle into a comfortable angle
• Swing arm handle mount that lets the line of pull shift as the lever travels towards the body
• Heavy gauge steel frame running on industrial grade pillow block bearings for a smooth stroke

Muscles worked and training uses

A pulldown trains the vertical pull, and moving the seat back shifts the work towards a high row, so the machine hits both the lats and the mid and upper back.

• Primary: latissimus dorsi (lats) and upper back
• Secondary: rear delts, rhomboids, lower traps and biceps
• Heavy vertical pulling for members who have outgrown the cable pulldown
• High row variations for posture and upper back thickness
• Grip variety work: wide, close, underhand and neutral in one session
• Back training for clients managing wrist or shoulder discomfort

Specifications

Frequently asked questions

How much space does the Front Facing Lat Pulldown need?

Primal lists it at 1800 mm long, 1250 mm wide and 2450 mm high. Leave about 600 mm clear around the frame for loading plates and getting in and out, which gives a working zone of roughly 3.0 × 2.5 m.

How is the machine loaded?

It is plate loaded. You add 50 mm Olympic plates to the lever arms (plates are not included), so the maximum load depends on the plates you have rather than a fixed stack.

What ceiling height do I need?

The frame itself is 2450 mm tall and the lever arms start high, so a 2.4 m ceiling is too low. Plan for at least 2.7 m, and check any beams, lights or fans above the spot you choose.

Can it do high rows as well as pulldowns?

Yes. With the seat all the way forward you get a near vertical pulldown. Slide it back and the angle of pull changes to a high row, which puts more of the work into the upper back and rear delts.

What warranty does it come with?

Primal Strength states a full commercial use warranty with 5 years on the frame, 3 years on parts, and 1 year on cables, pulleys, bearings and wearables, plus 1 year labour.

Do you deliver and install in Australia?

Yes. We ship Australia-wide from our Melbourne warehouse, and most metro deliveries arrive 1 to 7 business days after dispatch. It arrives in a 1900 × 1200 × 320 mm pack, and heavy items going to some regional addresses need a freight quote. Use the Ask about this machine form on this page for a delivery and installation quote.

Building a plate loaded back section? Ask our team about pairing the Front Facing Lat Pulldown with a Primal row, such as the Multi-Way Row, for a complete pulling setup.
