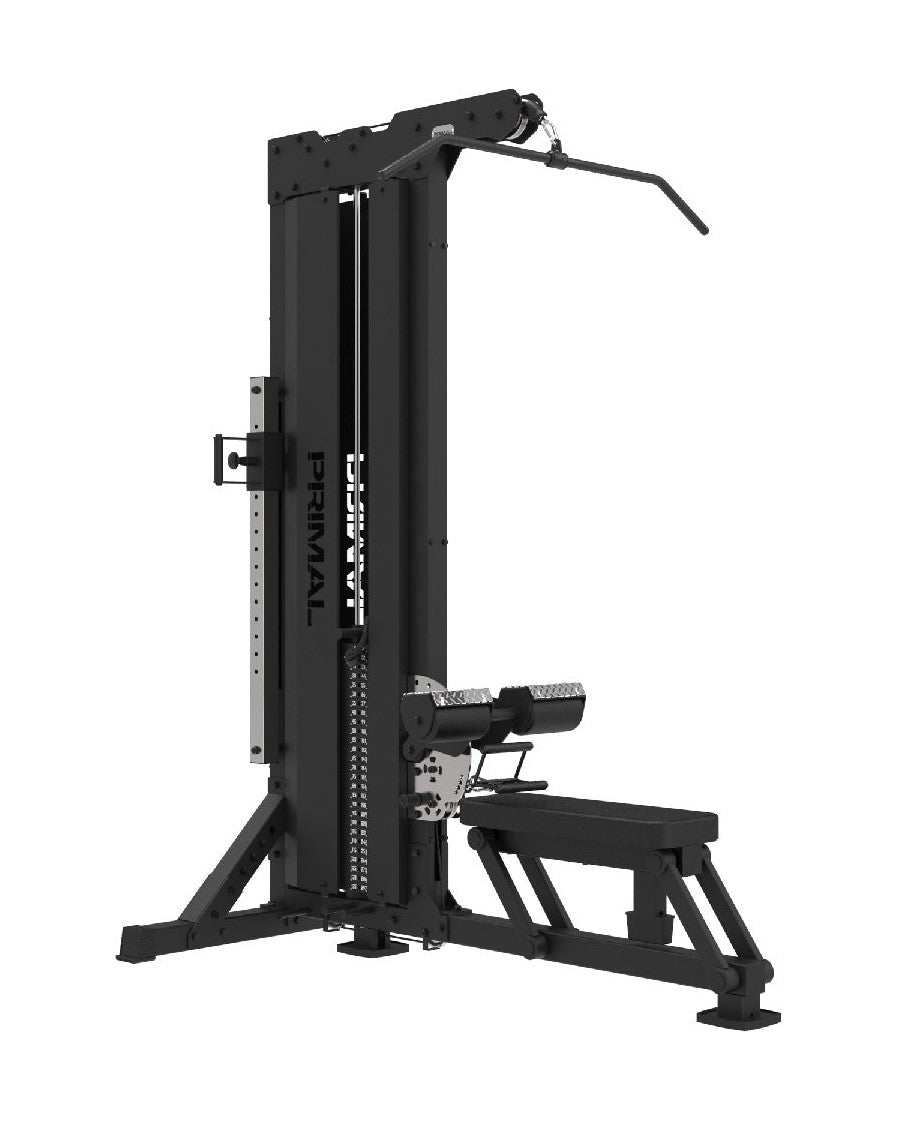

Primal Performance Series Pin-Loaded Lat Pulldown/Seated Row

This is Primal Strength's Personal Series pin loaded lat pulldown and seated row: one machine, one 135 kg weight stack, two of the most important back exercises. It is designed for home gyms and PT studios rather than high traffic commercial floors, and it measures 2040 × 1160 mm on the floor with a height of 2305 mm.

Combining the pulldown and the low row on a single stack saves the floor space and cost of two separate machines, which is why it suits a serious garage gym or a small studio that wants a full pulling setup without a second station.

Who it is for

• Home gyms that want a proper selectorised back machine in one footprint
• PT studios where clients need a pulldown and a row without a second machine
• Small private training spaces that want a plate free set up
• Not built for 24/7 commercial floors: Primal rates it for light commercial use, so busy gyms are better served by the Performance Series pin select range

Key features

• Dual function design: lat pulldown from the high pulley and seated row from the low pulley on the same stack
• 135 kg weight stack that covers beginners through to strong lifters
• 1:1 pulley ratio, so the weight on the stack is the weight you move
• Adjustable pulldown height to fit users of different heights and keep a full range of motion
• Large adjustable seat pad for a stable, supported position
• Lat bar and seated row attachments included
• Primal offers it with or without a stack shroud; ask us which configuration suits your space

Muscles worked and training uses

Vertical and horizontal pulling on one machine means the whole back gets trained, not just the lats.

• Primary: latissimus dorsi, rhomboids and middle trapezius
• Secondary: biceps, rear deltoids and forearms
• Wide grip, close grip and neutral grip pulldowns for varied back development
• Seated cable rows for posture and upper back thickness
• High cable accessory work such as straight arm pulldowns and triceps pushdowns

Specifications

Frequently asked questions

How much space does the lat pulldown and seated row need?

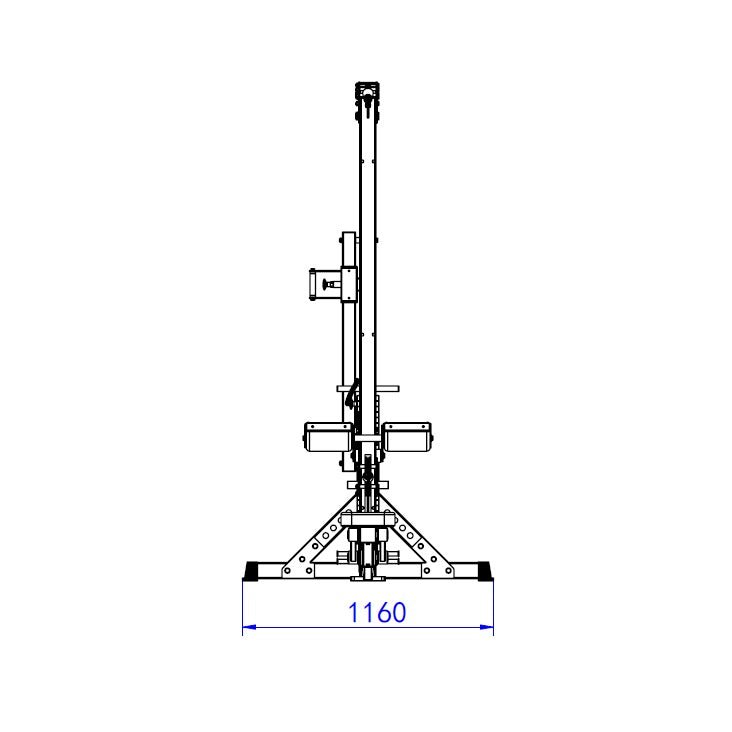

It measures 2040 mm long, 1160 mm wide and 2305 mm high. Leave around 600 mm clear on each side for getting on and off and for the row position, which gives a zone of about 3.2 × 2.4 m.

What ceiling height do I need at home?

The machine is 2305 mm tall, so a standard 2.4 m ceiling leaves very little margin. Measure your room carefully, check for downlights, beams and garage door tracks, and allow extra height for standing the frame up during assembly. If your ceiling is under 2.4 m, talk to us before ordering.

How heavy is the weight stack?

It has a 135 kg pin select stack running at a 1:1 ratio. You set the load with the pin, so there are no plates to load.

Is it suitable for a commercial gym?

Primal classes this as a Personal Series machine for home and studio use, with a light commercial warranty. For a high traffic commercial floor we recommend the Performance Series pin select lat pulldown and seated row machines.

What warranty does it have?

Primal Strength rates it for light commercial use with 5 years on the frame, 2 years on parts, and 1 year on pads, cables, pulleys and wearables.

Do you deliver and install in Australia?

Yes. We ship Australia-wide from our Melbourne warehouse, and most metro deliveries arrive 1 to 7 business days after dispatch. Heavy items going to some regional addresses need a freight quote. Use the Ask about this machine form on this page for a delivery and installation quote, and mention any stairs or tight access at your home.

Setting up a home or studio strength room? Ask us about pairing this machine with a Primal adjustable bench and a rack for a complete setup.
