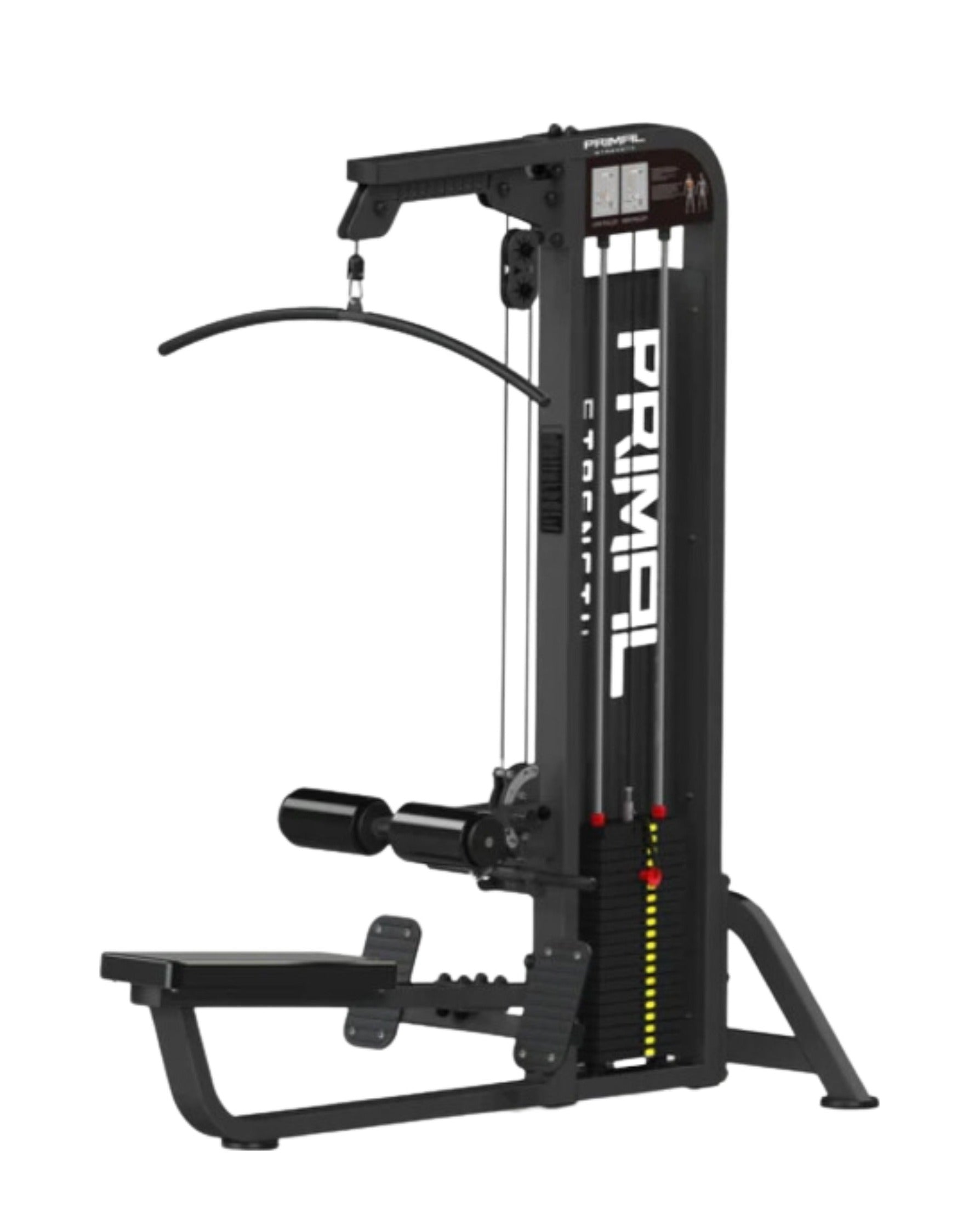

The Primal Performance Series Dual Lat Pulldown/Seated Row is a commercial pin loaded back machine that combines a vertical pull and a horizontal row on one frame, with a 125 kg weight stack at a 1:1 ratio. It takes up 1990 × 950 mm of floor space and stands 2220 mm tall, so check ceiling height before you order.

Having the two most important back exercises on one machine means a compact studio or gym can offer full pulling work in a single footprint, with a 1:1 ratio so the number on the stack is the load the user feels.

Who it is for

• PT studios that need both pulldowns and rows but only have room for one back machine
• Commercial gyms adding extra pulling capacity to a selectorised circuit
• Strength and conditioning facilities balancing heavy pressing with back volume
• Corporate and club gyms that want simple, guided back training for all users

Key features

• Lat pulldown and seated row on one frame, covering vertical and horizontal pulling
• 125 kg pin select stack with a 1:1 weight stack ratio for true, predictable loading
• Gas sprung adjustments for quick changes between users and exercises
• All metal components built for the busiest commercial floors
• Urethane injection moulded pads with double stitched covers
• Laser cut metal shroud around the stack to protect users
• Matte black electro powder coated finish to match the Performance Series dual range

Muscles worked and training uses

The pulldown draws the bar from overhead down towards the chest, and the row pulls the handle towards the torso, so the machine trains the back through both main pulling angles.

• Primary: latissimus dorsi, rhomboids and middle trapezius
• Secondary: biceps, rear deltoids and forearms
• Pull day sessions that pair vertical and horizontal pulling on one station
• A pull up progression for members who cannot yet lift their bodyweight
• Posture and upper back work to balance chest and pressing volume

Specifications

Frequently asked questions

How much space does the Dual Lat Pulldown/Seated Row need?

The machine measures 1990 mm long, 950 mm wide and 2220 mm high. Add about 600 mm of clear space around it for access, so allow a zone of roughly 3.2 × 2.2 m.

What resistance does it use?

It runs on a 125 kg pin select stack with a 1:1 weight stack ratio, so the load selected on the stack is the load being pulled.

What ceiling height do I need?

At 2220 mm tall this is one of the taller machines in the range. A 2.4 m ceiling will clear it, but check for low beams, lights, fans or bulkheads above the spot you have in mind, and allow room to stand it up during installation.

What warranty is included?

Primal Strength gives it a full commercial use warranty of 5 years on the frame, 3 years on parts, 1 year on pads, cables, pulleys and wearables, and 1 year labour.

Do you deliver and install in Australia?

Yes. We ship Australia-wide from our Melbourne warehouse, and most metro deliveries arrive 1 to 7 business days after dispatch. It weighs 325 kg packed, so some regional addresses need a freight quote. Request a delivery and installation quote through the Ask about this machine form on this page.

Is the packed crate hard to get into a building?

The crate is 2280 × 740 × 490 mm, long but narrow, so it usually fits through standard doors on its side. It still needs a clear path and lift or ground floor access at 325 kg.

Pair it with the Primal Dual Chest/Shoulder Press for a compact push and pull setup on a selectorised floor.
